Melanin and melanoma: Updating molecular structure and photothermal therapy
Stockert, JC1,2
1
Universidad de Buenos Aires, Facultad de Ciencias Veterinarias, Instituto de Investigación y Tecnología en Reproducción Animal,
Avda. Chorroarín 280, Buenos Aires C1427CWO.
2
Universidad de Buenos Aires, Facultad de Medicina, Instituto de Oncología “Angel H. Roffo”, Area Investigación, Avda. San Martin
5481, Buenos Aires C1417DTB, Argentina
Recibido: 23/06/2021
Aceptado: 05/07/2021
Correspondencia e-mail: Juan Carlos Stockert jcstockert@fvet.uba.ar
Summary
Melanin pigment and melanoma are two fields of increasing interest and relevance in biomedical research. Melanins are ubiquitous biopigments with strong adaptive value and multiple functions. In mammals, melanin corresponds to eumelanin (brown-black) and pheomelanin (yellow-red), and is found mainly in the skin and derivatives, retinal pigmented epithelium, and central nervous systems (neuromelanin, in substantia nigra, locus coeruleus, etc.). Melanin also occurs in the malignant melanoma, which is one of the most aggressive and therapy-resistant tumors in veterinary and human medicine. Several chemical structures have been proposed for eumelanin, but there is still no agreement about its molecular organization. Two models, namely a flexible linear chain, and a rigid planar chain, are the structures that better agree with physico-chemical properties of eumelanin. The latter model, which appears as the most plausible structure, corresponds to a benzoquinone derivative of the porphycene ring, and explains the broad-band light absorption, antioxidant capacity, electric conductivity, and photothermal effect, as well as the multilayered and graphite-like organization shown by X-ray crystallography and electron microscopy. In addition to traditional oncologic treatments and recent immunological and gene therapy advances, photodynamic and photothermal approaches represent novel therapeutic modalities for melanoma. In the latter case, since eumelanin is practically the ideal photothermal sensitizer, the massive vibrational decay from photo-excited electronic states after NIR irradiation induces an immediate and highly efficient heating response that results in coagulative necrosis of the tumor. This allows repetitive treatments due to the remaining melanin contained in tumoral melanophages. Although the evolution and prognosis of the advanced melanoma is still a concern, new physical procedures can now be applied.
Key words: antitumor therapy, eumelanin, indole polymers, melanoma, photothermal therapy.
Melanina y melanoma: Actualización de la estructura molecular y terapia fototérmica
Resumen
La melanina y el melanoma son dos campos de interés y relevancia crecientes en investigación biomédica. Las melaninas son biopigmentos ubicuos con gran valor adaptativo y múltiples funciones. En mamíferos, la melanina corresponde a la eumelanina (marron-negro) y a la feomelanina (amarillo-rojo), y se encuentra en la piel y derivados, epitelio pigmentado de la retina, y sistema nervioso central (neuromelanina, en substantia nigra, locus coeruleus, etc). La melanina también está presente en el melanoma maligno, uno de los tumores más agresivos y resistentes a la terapia en medicina veterinaria y humana. Varias estructuras químicas han sido propuestas para la eumelanina, pero todavía no hay acuerdo sobre su organización molecular. Dos modelos, uno constituido por una cadena linear y flexible, y otro por una cadena plana y rígida son las estructuras que mejor encajan con las propiedades físico-químicas de la eumelanina. El último modelo, que parece ser la estructura más plausible, corresponde a un derivado benzoquinónico del porficeno y explica la absorción de luz de banda ancha, la capacidad antioxidante, la conductividad eléctrica y el efecto fototérmico, así como también la organización en multicapa similar al grafito mostrada por la cristalografía de rayos X y la microscopía electrónica. Sumados a los tratamientos oncológicos tradicionales y a los avances inmunológicos y de terapia génica más recientes, los abordajes fotodinámico y fototérmico representan novedosas modalidades terapéuticas para el melanoma. En este último caso, como la eumelanina es el sensibilizador fototérmico prácticamente ideal, el decaimiento vibracional masivo a partir de estados electrónicos foto-excitados por NIR induce un calentamiento inmediato y muy eficiente que produce la necrosis coagulativa del tumor. Esta respuesta permite tratamientos repetidos debido a la melanina remanente contenida en los melanófagos tumorales. Aunque la evolución y pronóstico del melanoma avanzado son todavía asuntos preocupantes, nuevos procedimientos físicos pueden ser ahora aplicados
Palabras clave: eumelanina, fototerapia, melanoma, polímeros de indol, terapia antitumoral.
INTRODUCTION
Melanins are probably the most ancient
group of natural pigments (biochromes), with
multiple roles in almost all organisms across the
Phyla. Prokaryota and Eukaryota 30,35,81, the last
including the kingdoms Protista, Fungi, Plantae,
and Animalia have melanins. Melanins are indoleand catechol-type biopolymers, and in mammals,
indole-containing melanins correspond to eumelanin (brown-black) and pheomelanin (yellow-red).
They are found mainly in the skin and derivatives,
retinal pigmented epithelium, and central nervous
system as neuromelanin (e.g., substantia nigra, locus coeruleus, and stria vascularis in the cochlea).
In plants and fungi, melanins generally correspond
to the catechol-type and they are named allomelanins129. Recent reviews deal with the main features
of melanin and melanoma14,81,82.
The precise molecular structure of eumelanins is still poorly known, although an overwhelming evidence indicates that they are formed by
polymers with high conjugation (double bond) degree14,35. On account of the close relation between
chemical organization and eumelanin properties,
in the present review emphasis will be made on the
molecular structure, as well as on the high photon
absorption and heat production, which results in
the known and useful photothermal effect58,94.
Eumelanin occurs as granules about 1
µm in diameter (melanosomes) produced in neuro-ectodermal melanocytes. The malignant melanoma, one of the most aggressive animal tumors,
just originates from this cell type. In veterinary
medicine, in addition to experimental animals
(e.g., mice, hamsters)20,67,91,110, melanoma tumors
also occur in dogs, horses, and in companion and
larger domestic animals42,43,109. In dogs and humans, melanoma is a malignancy very aggressive
and highly resistant to standard treatments, with
a significant overlapping to humans in both clinical and histopathological features. Spontaneous
canine melanoma is also a more suitable disease
model of human melanoma than traditional murine systems, providing useful preclinical data for
translation of treatment to human patients.
On account of the difficulty in successfully treating the malignant melanoma in advanced and metastatic stage3,71, further studies on
new therapeutic modalities based on chemical and
physical approaches are still necessary. At present,
new protocols using cytokines, check point and
kinase inhibitors, gene and immunotherapy are
applied for advanced melanomas2,12,25,36,43,121,104.
However, photochemical and photophysical treatments are also increasingly employed, and examples are the photodynamic- and photothermal
therapies14. The aim of this review is to update
and summarize proposed molecular structures of
eumelanin, as well as macromolecular properties,
mainly to fundament therapeutic developments
for its use as an ideal endogenous chromophore
for physical therapy of melanomas.
CHEMICAL STRUCTURE
The chemical structure of eumelanin has
been commonly investigated by the analysis of fragmented degradation products, and less attention has
been devoted to the application of physical methods.
Studies based on X-ray crystallography and electron
microscopy have now shown that synthetic and natural eumelanin present a multilayer graphite-like
organization, which explains most physico-chemical properties of this supramolecular solid material.
Several molecular models have been suggested for
eumelanin, from simple aggregates of indole monomers38 to cyclic23 or helicoidal tetramers84, and flexible linear or zig-zag chain polymers86. Common eumelanin models from known indole precursors such
as 5,6-dihydroxyindole (DHI), and indolequinone
(IQ) have been recently reviewed14.
In general, three types of molecular organization can be taken into account, namely monomer and cyclic oligomers, flexible chains, and rigid
chains. There are supports and opposing views for
each of these structural models, in order to explain
the striking properties of eumelanin. Only flexible
and rigid chain types will be described here (Figure
1). Exploring theoretical structures by molecular
modeling has allowed advances in understanding
the organization of natural and synthetic melanins.
Poly 2-4 IQ zig-zag chain, as well as linear
poly DHICA (Figure 1 A) and poly 4-7 IQ chains
are flexible polymers, which represent the commonly
formulated structures of eumelanin35,72,92. In the case
of tetra 4-7 IQ (Figure 2,A), a dihedral angle of ~40º
between IQ units appears as an impediment to the
electron π conjugation. However, this dihedral angle
becomes lower (~20 º) in the first excited state (S1
) of
stacked IQ rings, thus allowing increased resonance.
The 3D organization of common eumelanin models
is still poorly known, and there are different views
according to the polymer structure. Stacking of flexible linear or zig-zag chains35,72, or bundling arrays of
flexible linear polymers have been proposed86,92.

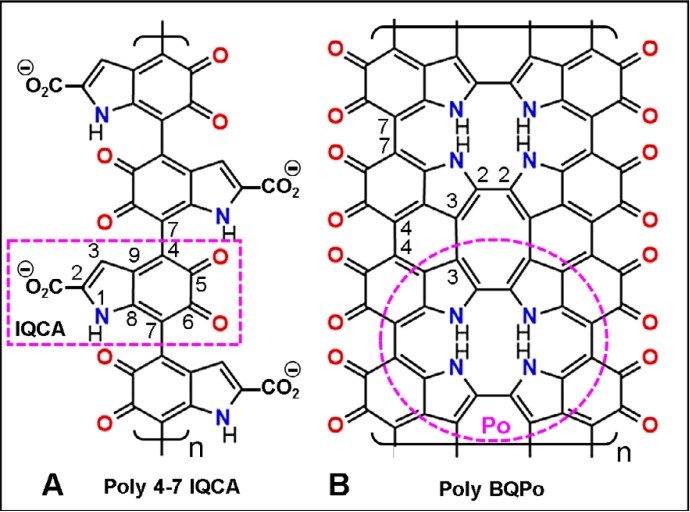

Figure 1:Common models of eumelanin polymers
formed by indolequinone units showing formal double
bonds and atom numbering. A: linear flexible chain of
poly 4-7 indolequinone carboxylic acid (IQCA, violet
rectangle). B: planar rigid poly benzoquinone-porphycene (poly BQPo, with the porphycene ring (Po) as a
violet ellipse). Chemical structures are represented according the indicated references, poly 4-7 IQCA35,72,92,
and poly BQPo90. In this review, all indoles are shown
in their oxidized form (IQ).
Other chemical structures have been
suggested as rigid models. A planar poly 1-7,3-4
IQ85,126, and a curved fused IQ (poly 2-7,3-4 IQ)
are rigid models that could explain several physico-chemical properties of eumelanin. The structure and resonance of zig-zag 2-4 IQ and 4-7 IQ
models have been recently reviewed14.
Interestingly, an overlooked double IQ
chain model for eumelanin was early proposed90.
In this polymer, formulated as poly 2-2,3-3,4-
4,7-7 IQ, or simply, poly BQPo, the monomeric
unit is a tetra-benzoquinone (BQ) derivative of
the porphycene ring (Po) (Figure 1,B), which is a
known porphyrin isomer115. The porphycene ring
and several metal complexes are planar unsaturated macrocycles, and therefore, their polymers
must be highly conjugated and stacked structures
that share important physico-chemical properties
with graphite-like solid state materials.
The possibility that this planar benzoquinone-porphycene (BQPo) unit (Figures 1,B
and 3,A) could be the main component of both
eumelanin and synthetic melanins is very interesting. Some authors have mentioned that eumelanin could be formed by this BQPo unit or other similar ones7,15,26,126. In contrast with linear or
zig-zag flexible chain models such as poly 4-7 IQ
and 2-4 IQ35, the planar poly BQPo model fulfills most characteristics of eumelanin as a supramolecular solid based on stacked 3D multilayers,
explaining its broad-band absorption, semi- and
photo-conductivity, fast electronic energy decay
with efficient heat production, binding affinity
for aromatic ligands, as well as ultrastructural and
crystallographic features.
MOLECULAR ORBITALS
Inspection of molecular orbital (MOs) of melanin models allows to explain the conjugation changes induced by photoexcitation. A tetrameric portion of the poly 4-7 IQ model is shown in Figure 2,A. Ground and light-excited singlet states of molecules (S0 and S1 , respectively) result in different MOs, which correspond to the highest-occupied (HOMO), and lowest-unoccupied (LUMO) energy levels, respectively14,113. In this case, the S1 state (LUMO+0) of the 4-7 IQ tetramer has a more extended electron π conjugation than that of the ground singlet S0 state (HOMO-0), showing a larger and continuous extension of green and violet lobes in Figure 2,C. In models of melanin polymers, excited states are better represented by mesomeric ionic forms, with MOs showing the high π* conjugation degree (Figure 2,D)14. The massive dissipation of the electronic energy from excited MOs produces a great amount of heat, namely, a photothermal response. In the case of the tetra BQPo model (Figure 3), different MO orientations are also present. No preferential HOMO-0 orientation is observed, but a clear longitudinal direction can be seen in LUMO+0 (Figure 3,A,B). In this structure, the vicinal carbonyls (=HC-CO-COCH=) from ortho-benzoquinones show the same longitudinal LUMO+0 pattern as in poly 4-7 IQ. Likewise, the energy levels of excited states result in a compact overlapping of the LUMO block, appearing similar to the electron conduction band of semiconductors. Quinone compounds present as building units of allomelanins also show the same extended LUMO pattern. The increase of absorption and dark color of the DHI-melanin chromophore by further oxidation is explained by conversion of catechols to quinones86,92. It seems logical to assume that, in pigments with increased number of linear ortho-benzoquinones, black color and broad-band absorption spectra are closely related to the high π*-conjugation and extended longitudinal LUMO+0 components, with reduction of the HOMO-LUMO energy gap (increased semiconductor-like behavior).
SUPRAMOLECULAR PROPERTIES
Melanins have a great importance in biomedical fields and materials science due to their striking features: (a) broad-band light absorption spanning the ultraviolet (UV), visible, and near-infrared (NIR) spectrum; (b) semi-conductivity and photo-conductivity; (c) ultrasound absorption; (d) efficient dissipation of the absorbed photon energy as heat; (e) antioxidant and radical-scavenger activity; (f) reversible redox behavior; (g) high adhesiveness, and (h) strong binding of metal cations, drugs and organic compounds. Excellent reviews on the chemistry, properties, and applications of melanin and melanin-like materials have been published19,30,34,35,45,54,82,111,93,106 . Light absorption from mammalian, invertebrate (cuttlefish), and synthetic (polydopamine) melanins have the same spectral characteristics86,96, showing a monotonic broad-band absorption spectrum with exponential decay, as occurs in typical graphitic materials14. In addition to UV, visible and NIR light, eumelanin is capable of absorbing X- and γ-rays52,66, as well as ultrasound in the 1-MHz range62,63,83. The broad-band photonic absorption of eumelanin reminds more to an inorganic semiconductor material with a small energy band gap (about 0.5-1.5 eV) than to an organic chromophore with absorption peaks typically associated to transitions from π bonding to antibonding π* orbitals. Thus eumelanins and black graphitic materials are supramolecular structures and share the broad-band absorption that characterizes amorphous semiconductors with close valence and conduction bands82,89. Interestingly, these features are
Figure 2:A: Atomic volume model of tetra 4-7 IQ. PM3 geometry optimization with HyperChem
7 by Polak-Riviere method converged to 0.1 kcal/(Å mol). H bonds of 2.7 Å are shown as yellow
bars. Averaged dihedral angle between indole units: 40º. B, C: HOMO-0 and LUMO+0, respectively, of tetra 4-7 IQ showing positive (green) and negative (violet) π-orbital lobes (Gouraud shaded
3D isosurface), with energy values (E). Orbital contour (1/orbital radius): 0.02. D: Conjugated double bond pattern (red thick and thin lines) of poly 4-7 IQ in the S1 state, according to LUMO+0.

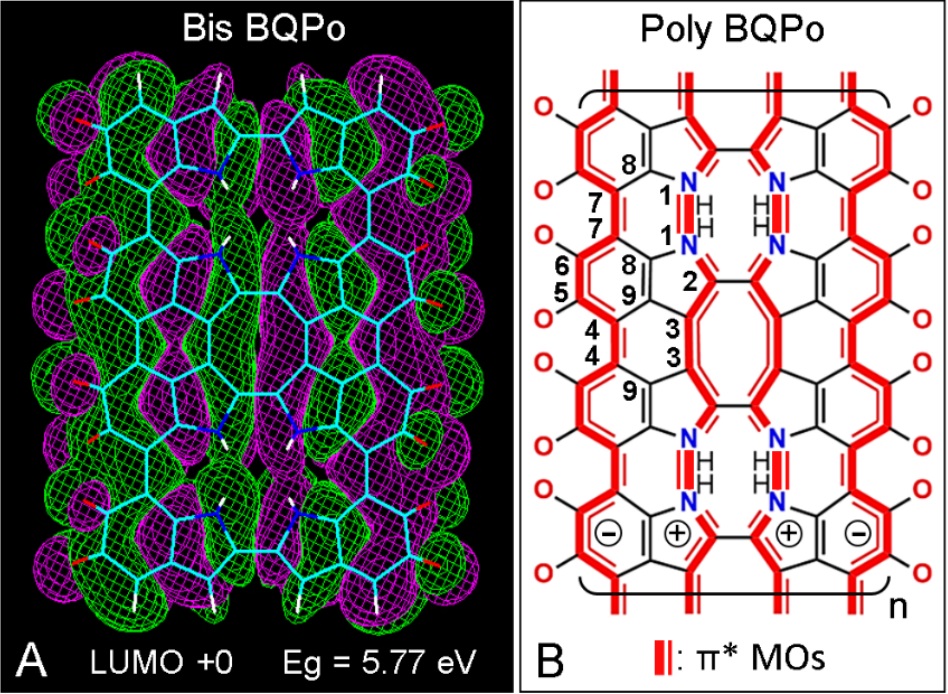

Figure 3:A: LUMO+0 pattern of bis BQPo, recorded as in Fig. 2. Jorgensen-Salem surface, orbital
contour: 0.0008. Observe the long LUMO+0 orbital lobes that correspond to the conjugated double
bond pattern of the S1 state. Energy gap (Eg) = 5.77 eV (from -8.81 eV to -3.04 eV. B: Chemical
structure of poly BQPo, showing the conjugated double bond pattern (red thick and thin lines).
also found in pyrolyzed polydopamine (PDA) films,
graphene, and PDA-based carbon spheres77.
If a planar indole polymer such as poly
BQPo would be the main structure of eumelanin,
then a typical graphite-like organization of stacked
aromatic layers would be found using transmission
electron microscopy (TEM) and X-ray crystallography. In keeping with this, ultrastructural studies
show that stacked multilayers with spacing of 3.4
Å is just the structural pattern observed in samples of natural and synthetic eumelanins (Figure
4)23,26,118,123. It is difficult to conceive how other
models (H-bound monomers, cyclic tetramers, zigzag and linear flexible polymers) could explain the
graphitic organization of eumelanin. In addition to
planar structures, wavy, and concentrically stacked
multilayers are commonly observed by TEM23,123,
which can be due to ether bridges that result in a
curved organization of poly BQPo layers90.
The conjugated structure of this polymer
also allows easy redox changes and reversible equilibrium between quinone and catechol groups.
Eumelanin is a powerful antioxidant and detoxification agent by removing reactive oxygen species
(ROS), oxidizing radicals, toxic heavy metals, and
harmful chemicals which are relevant to body detoxification and protection. Among several unusual and intriguing features of eumelanin, its striking
adhesivity and binding capacity to different surfaces and compounds are worth to note106,117. Regarding the interaction with inorganic ions, eumelanin
and synthetic melanins easily bind to mono- di-,
and trivalent metal cations such as Na, K, Mg, Ca,
Al, Mn, Fe, Ni, Cu, Zn, Co, Cr, Cd, Sr, Ti, V, Mo,
Ag, Sb, Hg, Pb, La, Gd, As, etc.35,45,89.
Metal chelation by oxygen ligands such as
carboxyl, catechol, and quinone groups could be responsible for side-to-side bridges between adjacent
poly BQPo chains, as well as for strong adhesive
binding to particles and surfaces24,77,103. Likewise,
chelation of heavy metal cations is possible mainly
by nitrogen ligands of porphyrin or porphycene regions (e.g., IQ tetramer, BQPo), and could provide
the way for removing toxic metals. Eumelanin has
reducing activity, and this feature is applied to reduce directly silver ion (Ag+
) to the uncharged metal (Ag0
)
77, which accounts for the argentaffin reaction to reveal melanin under the light microscope
using the Fontana-Masson technique9,18.
Due to the anionic character of eumelanin, it can be additionally stained by cationic
dyes and complexes such as aluminum-hematein.
However, dye binding to melanin could be also
based on hydrophobic forces as occurs in the case
of lipid stains. It is known that planar aromatic
compounds can intercalate into adequate host lattices forming inclusion complexes124. In the case
of tissue components (polysaccharides, lignin,
melanin, nucleic acids duplexes), bathochromic
changes in the absorption spectra are induced by
monomerization of dyes, which remain trapped
between aliphatic chains or aromatic rings of
the biopolymer6,112,114. Fluorescence quenching is
expected to occur in the case of fluorochromes
intercalated into dark chromophores such as eumelanin, which can absorb emission by an inner
filter (screen) effect, and therefore fluorescence
reactions would be prevented113.
It is known that eumelanins are capable of
dissipating >99.9% of absorbed UV- visible radiation through a non-radiative decay mode85. Since
the radiative decay of eumelanin is nearly zero, it
is expected that its fluorescence emission should
be negligible. However, an intriguing autofluorescence has been assigned to melanin40,46, with an
excitation peak at 450 nm and emissions from 440
nm to >800 nm, allowing autofluorescence lifetime
imaging for ophthalmoscopy, detection of melanin
in pigmented cells, and thermophoresis assays of
melanin-binding drugs39,41,50. However, previous
UV irradiation or H2O2
oxidation are needed in
order to induce visible eumelanin emission59, which
seems to occur by partial molecular degradation.
It is worth to note that when the oxidized brownblack DAB polymer after immunoperoxidase
method is subjected to UV irradiation, a strong yellowish fluorescence also appears due to degradation
products48. In the case of ophthalmoscopy, where
the lifetime of autofluorescence from the retinal
pigment epithelium is recorded, the most relevant
autofluorescence is not due to melanin but to lipofuscin, and NAD(P)H, FAD, collagen, elastin, and
carotenoids can be also involved39.
Figure 4:A: TEM image of synthetic polydopamine eumelanin, showing the waved and/or concentric graphitic
structure of the polymer layers. B: TEM image of the same material at higher magnification. Observe both the planar and curved (onion-like) stacked organization of the polymer, as well as the interlayer spacing of 3.4 Å between
aromatic planes (Reproduced with permission from Chen et al., ACS Nano. 2013; 7: 1524-32).
PHOTOTHERAPY
In addition to immuno-, gene, and target-based treatments for melanoma, light-induced procedures are also applied. They include photodynamic therapy (PDT) and photothermal therapy (PTT). PDT is based on the administration of a photosensitizer (PS) drug that when irradiated with suitable light induces the formation of reactive oxygen species (ROS), which then provokes damage and death of tumor cells. The fundaments and applications of PDT have been widely reviewed1,11,115,116,122,119. Melanoma PDT has been somewhat overlooked, possibly due to the strong light absorption of melanin and its anti-oxidant effect. However, there is now an increasing interest on PDT for melanoma, mainly using PSs such as methylene blue22, hypericin31, riboflavin4 , chlorins95,107, porphyrins101,108, and phthalocyanins61,79,80,120. Numerous in vitro and in vivo studies show considerable efficiency of PDT for melanoma cells8,87, as well as good clinical response10,37,70,107. In contrast with PDT, PTT has the advantage that it does not depend on O2 availability at the treated tumor. Only an efficient mechanism of lightto-heat conversion is necessary in the thermal PS to induce an antitumoral response. The photothermal effect is based on a fast conversion of electronic excitation to vibrational excitation, and then thermal energy is produced from the excited molecule by relaxation of vibrational energy levels58,94 (Figure 5).

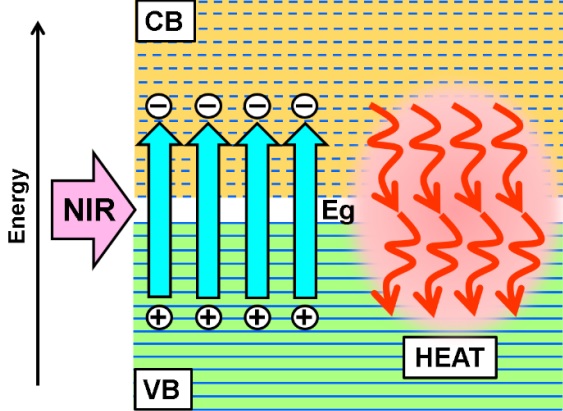

Figure 5:Photothermal effect. The energy of NIR photons is
absorbed by electrons in the valence band (VB) of photothermal polymers or nanoparticles, pumping them to the conduction band (CB), through an energy gap (Eg). Electronic excitation leaves positive charges (holes) in the VB, and electrons
and holes rapidly recombine converting most of the absorbed
energy in lattice vibrations (thermal energy, wiggly arrows).
Photothermal sensitizers such as organic dyes, nanoparticles, and pigments are used in antitumoral therapy. Aggregated (stacked) dye and pigment clusters undergo a prompt decay from electronically excited states through a cascade of vibrational (thermal) modes17. Several cyanine and naphthalocyanine dyes induce damage on cultured tumor cells. Indocyanine green (ICG) has been the PS prototype for PTT using near infrared (NIR) irradiation21,127. Although ICG has been applied for simultaneous PDT and PTT of melanomas98, some doubts still exist about the true photothermal or photodynamic mechanism of ICG47. Unfortunately, sometimes melanoma cells in vitro do not show refringent melanosomes under phase contrast microscopy, and this feature makes it difficult to assess the results of some PDT or PTT treatments. ICG has been applied for PTT of choroidal melanoma32, and a far-red absorbing cyanine has proved useful for the amelanotic melanoma B78H1 in vitro and in vivo17. Some Cu-, Ni-, and Pd-containing dyes show relevant NIR-induced photothermal effects, examples being Cu(II)-hematoporphyrin, Ni(II)-octabutoxy-naphthalocyanine, and Pd(II)-octabutoxy-naphthalocyanine17,33. Nanoparticles and novel delivery strategies are now increasingly applied for PTT70,129, the most widely used nanomaterials being gold, metal oxides and sulfides, and organic polymers55,57,125. Regarding natural pigments, it is known that photothermal melanin-based hair removal is widely applied in cosmetics49. In the case of experimental tumors, pulsed PTT of B16 tumors with broadband incoherent light (600-800 nm) caused vasculature and melanosome damage, with necrosis of tumor cells64. Lethal photothermal effects were also observed in murine tumors after PTT with synthetic dopamine-melanin and NIR irradiation76,77,128. China ink (carbon black), carbon nanotubes, and melanin from black sesame seeds and cuttlefish were recently used for NIR-PTT of cell cultures and tumors13,44,54. Eumelanin is the most suitable endogenous chromophore for direct PTT of melanotic melanoma27. During continuous irradiation with a continuous wave (cw) 808-nm laser a steady heating occurs, with local hyperthermia, macromolecule denaturation, explosive vaporization, cavitation, and shock-wave emission5,90, which result in severe damage of the tumor tissue. Regarding this effect, hyperthermia has been used for cancer treatment105. To illustrate this effect, BALB/c mice bearing the experimental melanotic melanoma B16-F10 were subjected to PTT using a cw 808-nm laser irradiation (Figure 6), which produced massive coagulation necrosis, pycnotic nuclei, disrupted tumor cells releasing melanin and cytoplasm fragments27. Epidermal cell damage was not found in the white skin over the NIR irradiated melanoma, even considering that the exciting light had first to traverse this overlaying tissue to reach the tumor.
Figure 6:H&E images of paraffin sections from B16-F10
tumors. A: Non-irradiated tumor, with intracellular
melanosomes, and large extracellular melanin granules
(white arrows). B: Tumor 24 h after NIR irradiation for
10 min with a portable cw 808-nm laser pointer (200
mW, 1.2 mm beam diameter), showing massive necrosis: disrupted tumor cells (white arrows), pycnotic nuclei
(black arrows), and large melanophages (encircled). Scale
bars: 30 μm (Reproduced with permission from Colombo et al., Biomedical Optic Express. 2019; 10: 2932-41).
The presence of a great number of brownblack melanophages (Figure 6,B, encircled) is a
relevant feature of the irradiated tumor, because
these melanin-targeted cells could be subjected
to multiple PTT sessions. As glycerol is a strong
protecting agent against cell hyperthermia51, application of a glycerol drop on the depilated skin
reduces light scattering caused by keratin and also
avoids the non-desired but possible heating and
damage of skin tissues.
Absorption and scattering reduce severely light penetration within tissues. On account of
deeper tissue penetrance, irradiation with NIR
light at 800-820 nm (the diagnostic and therapeutic window) is commonly used for PTT13,27,82.
Using 808-nm PTT, the weak absorbance of melanin is compensated by a deep NIR penetration.
Therefore, 808-nm irradiation is very suitable for
PTT because the H2
O absorption is negligible,
and there are no other absorbing chromophores
except melanin94,96. A very efficient electron-phonon coupling occurs in eumelanin29, which explain its rapid decay into heat.
On the other hand, eumelanin shows a
high binding capacity for drugs and dyes. Chronic
administration of phenothiazine drugs16,60 or longterm, high-dose chloroquine therapy53 produced
chorioretinopathy, which allowed to suggest an
association between toxic effects of some drugs
and their high affinity for eumelanin. Likewise,
eumelanin binding of drugs has been implicated
not only in ocular toxicity, but also in ototoxicity
and disturbances of the skin and hair pigmentation99. Eumelanin has a strong affinity for certain lipophilic and aromatic compounds, via π-π
stacking, electrostatic and van der Waals forces,
and/or H-bonding82. An example is the binding
of eumelanin with the copper phthalocyanine
dye Alcian blue 8G23.
Typical dyes and drugs that bind to eumelanin are acridine orange, aflatoxin B1
, aminoglycoside and tetracycline antibiotics, carcinogenic polycyclic hydrocarbons, chloroquine,
chlorpromazine, dexamethasone, diclofenac,
fluoroquinolones, herbicides, iodoquine, methotrexate, methylene blue, papaverine, psychotropic
and ophthalmic drugs, quinidine, etc.50,56,65,68,69,73,75,78,88, 97,102,118. This striking characteristic of eumelanin can be viewed as an intercalative binding
based on hydrophobic and π-π electron interactions, which does not involve structural changes
in the X-ray diffraction pattern of the pigment118.
In this proposed intercalative binding
mode, the ligand slips between the aromatic units
of eumelanin layers and remains trapped as an inclusion complex or “graphitic sandwich”, allowing
photon-electron-phonon coupling interactions28,
which are based on the occurrence of very small
HOMO/LUMO energy gaps, as well as pairs of
in-phase fused LUMOs (Figure 7). Thus, ligand
binding to eumelanin results in a greatly improved
electric conductivity23, as well as ultrasonic- and
radical/ROS-induced cytotoxicity with preferential killing of melanoma cells28,83.
Figure 7:Schematic lateral views of stacked poly
BQPo eumelanin layers (ML, blue) showing LUMO
patterns, with positive (green) and negative (violet)
molecular orbital (MO) lobes of π* electrons. A: Nonfused MOs at low energy. B: In-phase fused MOs at
higher energy. Note the same color and sign of fused
MOs. C: In-phase fused LUMOs of two eumelanin
layers with an intercalated dye (ID, red). Separation
between aromatic planes is indicated.
In keeping with this, several eumelanin-binding dyes could be used as photo- and sono-sensitizing drugs to enhance the antitumoral activity. Suitable chromophores for intercalation between aromatic eumelanin layers are planar vital probes such as some porphyrins, phthalocyanines and porphycenes. Examples would be TMPyP, ZnTPP, Pc13, ZnPc, TPPo, PdTPPo, that accumulate in endosome-lysosome organelles115,116, to which also belong melanosomes100.
CONCLUSIONS AND PERSPECTIVES
Regarding melanoma and melanin-based PTT, the chemistry of this biopigment is most relevant. The precise molecular structure of eumelanin is still poorly known, but it appears formed by an indole polymer with high conjugation degree. Although several models have been suggested, a linear rigid planar chain formed by BQPo units would be the structure that better explains the unusual physico-chemical properties of melanin and synthetic melanins (e.g., broad-band light absorption, antioxidant capacity, electric conductivity, photothermal effect, and multilayered graphite-like organization). The high conjugation of the pigment is illustrated by the longitudinal patterns of LUMOs and the reduction of the energy gap between HOMO and LUMO levels. It is logical to assume that on account of its strikingly high absorption in the UV-visible region, eumelanin is practically the ideal PS for melanoma PTT using NIR (e.g., cw 808-nm laser) irradiation. The massive vibrational decay from photo-excited electronic states induces an immediate and efficient heating response that results in coagulative necrosis of the tumor. As a great amount of melanin is released from melanoma cells during the necrotic process, repetitive NIR treatments are possible due to the remaining melanin contained in intratumoral melanophages. In addition to its more known biological features, eumelanin also presents a high binding capacity for drugs and dyes with an aromatic and planar configuration. The affinity for such ligands seems to be based on intercalative binding mechanisms through hydrophobic and stacking interactions between planar ligands and aromatic eumelanin layers. In this case, the intercalated ligand remains trapped as an inclusion complex within eumelanin, showing photon-electron-phonon interactions with in-phase fused LUMOs, and reduction of the energy gap. Ligand binding to eumelanin results in a greatly increased electric conductivity and could improve the photothermal response. As ultrasounds in the 1-MHz range are also strongly absorbed by eumelanin, appropriate ligand-eumelanin complexes could be used as photo- and sono-sensitizing drugs to enhance the antitumoral activity against melanoma cells, by generating increased and selective thermal and radical/ROS cytotoxicity, respectively. In this regard, suitable melanin-binding dyes could be vital probes for lysosomes because melanosomes also belong to these organelles. Therefore, new developments are expected to occur in these innovative fields of physical melanoma therapy.
ACKNOWLEDGMENTS
I thank A. Blázquez-Castro, L.L. Colombo, L.M.E. Finocchiaro, J. Herkovits, D.M. Lombardo, and M. Pozzi for valuable collaboration.
1. Abrahamse, H.; Hamblin, M.R. New photosensitizers
for photodynamic therapy. Biochem J. 2016; 473:347-64.
2. Achkar, T.; Tarhini, A.A. The use of immunotherapy
in the treatment of melanoma. J Hematol Oncol. 2017;
10:5. DOI 10.1186/s13045-017-0458-3.
3. Ahn, A.; Chatterjee, A.; Eccles, M.R. The slow cycling
phenotype: A growing problem for treatment resistance
in melanoma. Mol Cancer Ther. 2017; 16(6):1002-9.
4. Akasov, R.A.; Sholina, N.V.; Khochenkov, D.A.; et al. Photodynamic therapy of melanoma by blue-light photoactivation of flavin mononucleotide. Sci Reports. 2019; 9(1):1-11.
5. Angelsky, O.V.; Bekshaev, A.Y.; Maksimyak, P.P. et
al. Low-temperature laser-stimulated controllable
generation of micro-bubbles in a water suspension of
absorptive colloid particles. Opt Exp. 2018; 26:13995.
6. ArmasPortela, R.; Stockert, J.C. A reaction mechanism
for the orthochromatic staining of polysaccharides:
monomerizing interactions with basic dyes. Cell Mol
Biol. 1986; 32:44953.
7. Arzillo, M., Pezzella, A., Crescenzi, O.; et al. Cyclic
structural motifs in 5,6-dihydroxyindole polymerization uncovered: Biomimetic modular buildup of a
unique five-membered macrocycle. Org Lett. 2010;
12(14):3250-53.
8. Baldea, I.; Filip, A.G. Photodynamic therapy in melanoma - an update. J Physiol Pharmacol. 2012; 63(2):109-18.
9. Bancroft, J.D.; Gamble, M. Theory and practice of histological techniques. 6th ed. 2008; Churchill Livingstone, London.
10. Barbazetto, I.A.; Lee, T.C.; Rollins, I.S.; et al. Treatment of choroidal melanoma using photodynamic
therapy. Am J Ophthalm. 2003; 135(6):898-9.
11. Baskaran, R.; Lee, J.; Yang, S.G. Clinical development
of photodynamic agents and therapeutic applications.
Biomaterials Res. 2018; 22:25.
12. Berrios-Colon, E.; Williams, S. Melanoma review:
Background and treatment. US Pharmacist. 2012;
37(4): HS-4-HS7.
13. Blázquez-Castro, A.; Colombo, L.L.; Vanzulli, S.I.; Stockert, J.C. NIR pointer laser for in vivo photothermal therapy
of murine LM3 tumor using intratumoral China ink as a
photothermal agent. Lasers Med Sci. 2018; 33:1307-15.
14. Blázquez-Castro, A.; Stockert, J.C. Biomedical overview of melanin. 1. Updating melanin biology and
chemistry, physico-chemical properties, melanoma
tumors, and photothermal therapy. BIOCELL. 2021;
45(4):849-62.
15. Bridelli, M.G., Crippa, P.R., Ugozzoli, F. X-ray diffraction studies on melanins in lyophilized melanosomes.
Pigm Cell Res. 1990; 3:187-91.
16. Burian, H.M.; Fletcher, M.C.; Visual functions in patients
with retinal pigmentary degeneration following the use of
NP 207. AMA Arch Ophthalmol. 1958; 60(4 Part 1):612-29.
17. Camerin, M.; Jori, G.; Della Ciana, L.; et al. Photothermal sensitisation and therapeutic properties of a
novel far-red absorbing cyanine. Photochem Photobiol
Sci. 2009; 8:1422-31.
18. Carriel, V.S.; Aneiros-Fernandez, J.; Arias-Santiago, S.;
et al. A novel histochemical method for a simultaneous
staining of melanin and collagen fibers. J Histochem Cytochem. 2011; 59:270-7.
19. Cavallini, C.; Vitiello, G.; Adinolfi, B.; et al. (2020).
Melanin and melanin-like hybrid materials in regenerative medicine. Nanomaterials 2020; 10:1518.
20. Cekanova, M.; Rathore, K. Animal models and therapeutic molecular targets of cancer: Utility and limitations. Drug Des Develop Ther. 2014; 8:1911-.
21. Chen, W.R.; Adams, R.L.; Higgins, A.K. Photothermal effects on murine mammary tumors using indocyanine green and an 808-nm diode laser: an in vivo
efficacy study. Cancer Lett. 1996; 98:169-73.
22. Chen, Y., Zheng, W., Li, Y., et al. Apoptosis induced by
methylene-blue mediated photodynamic therapy in melanomas and the involvement of mitochondrial dysfunction
revealed by proteomics. Cancer Sci. 2008; 99(10): 2019-27.
23. Chen, C.T.; Ball, V.; de Almeida Gracio, J.J.; et al. Self-assembly of tetramers of 5,6-dihydroxyindole explains the
primary physical properties of eumelanin: experiment,
simulation, and design. ACS Nano 2013; 7:1524-32.
24. Chen, L.; Malollari, K.G.; Uliana, A.; et al. Selective,
catalytic oxidations of C–H bonds in polyethylenes
produce functional materials with enhanced adhesion.
Chem. 2021; 7:37-45.
25. Chen, Q.; Xu, L.; Liang, C.; et al. Photothermal therapy with immune-adjuvant nanoparticles together with
checkpoint blockade for effective cancer immunotherapy. Nature Comm. 2016; 7:13193.
26. Cheng, J.; Moss, S.C.; Eisner, M. X-ray characterization of melanins - II. Pigm Cell Res. 1994; 7:269-73.
27. Colombo, L.L.; Vanzulli, S.I.; Blázquez-Castro, A.; et al.
Photothermal effect by 808-nm laser irradiation of melanin: A proof-of-concept study of photothermal therapy
using B16-F10 melanotic melanoma growing in BALB/c
mice. Biomed Optics Exp. 2019; 10:2932-41.
28. Corry, P.M., McGinness, J.E.; Armour, E. Semiconductor properties of melanins related to preferential
killing of melanoma cells. Pigment Cell, vol. 2, 1976.
Karger, Basel, New York. p. 321-26.
29. Crippa, P.R.; Martini, F.; Viappiani, C. Direct evidence of electron-phonon interaction in melanins. J
Photochem Photobiol. B: Biol. 1991; 11:371-5.
30. D’Alba, L.; Shawkey, M.D. Melanosomes: biogenesis,
properties, and evolution of an ancient organelle. Physiol Rev. 2019; 99:1-19.
31. Davids, L.M.; Kleemann, B.; Kacerovská, D.; et al.
Hypericin phototoxicity induces different modes of cell
death in melanoma and human skin cells. J Photochem
Photobiol B: Biol. 2008; 91(2-3):67-76.
32. De Potter, P.; Jamart, J. Adjuvant indocyanine green in
transpupillary thermotherapy for choroidal melanoma.
Ophthalmology. 2003; 110:406-13.
33. Diddens, H.; Fischer, F.; Pottier, R.H. In-vivo investigations on dye-enhanced photothermal tumor therapy with a naphthalocyanine derivative. Oftalmologia.
2003; 56(1):59-61.
34. d’Ischia, M.; Napolitano, A.; Pezzella, A.; et al. Melanin biopolymers: tailoring chemical complexity for materials design. Angew Chem Int Ed. 2019. DOI 10.1002/
anie.201914276.
35. d’Ischia, M.; Wakamatsu, K.; Cicoira, F.; et al. Melanins and melanogenesis: from pigment cells to human
health and technological applications. Pig Cell Melan
Res. 2015; 28:520-44.
36. Domingues, B.; Lopes, J.M.; Soares, P.; Pópulo, H.
Melanoma treatment in review. Imm Targ Therapy.
2018; 7:35-49.
37. Donaldson, M.J.; Lim, L.; Harper, C.A.; et al. (2005).
Primary treatment of choroidal amelanotic melanoma
with photodynamic therapy. Clin Exp Ophthal. 2005;
33(5):548-49.
38. Dreyer, D.R.; Miller, D.J.; Freeman, B.D.; et al. Elucidating the structure of poly(dopamine). Langmuir.
2012; 28:6428-35.
39. Dysli, C.; Wolf, S.; Berezin, M.Y.; et al. Fluorescence
lifetime imaging ophthalmoscopy. Prog Retin Eye Res.
2017; 60:120-43.
40. Fellner, M.J.; Chen, A.S.; Mont, M.; et al. Patterns and
intensity of autofluorescence and its relation to melanin in human epidermis and hair. Int J Dermatol. 1979;
18(9):722-30.
41. Fernandes, B.; Matamá T.; Guimaraes, D.; et al. Fluorescent quantification of melanin. Pigm Cell Melan Res.
2016; 29(6):707-12.
42. Finocchiaro, L.M.E.; Fondello, C.; Gil-Cardeza, M.L.
Cytokine-enhanced vaccine and interferon-b plus suicide gene therapy as surgery adjuvant treatments for
spontaneous canine melanoma. Human Gene Ther.
2015; 26:367-76.
43. Finocchiaro, L.M.E.; Agnetti, L.; Fondello, C.; Glikin,
G.C. Combination of cytokine-enhanced vaccine and chemo-gene therapy as surgery adjuvant treatments for spontaneous canine melanoma. Gene Ther. 2019; 26:418-31.
44. Fisher, J.W.; Sarkar, S.; Buchanan, C.F.; et al. Photothermal response of human and murine cancer cells to
multiwalled carbon nanotubes after laser irradiation.
Cancer Res. 2010; 70:9855-64.
45. Galeb, H.A.; Wilkinson, E.L.; Stowell, A.F.; et al. Melanins as sustainable resources for advanced biotechnological applications. Global Chall. 2021; 5:2000102.
46. Gallas, J.M.; Eisner, M.; Fluorescence of melanin-dependence upon excitation wavelength and concentration. Photochem Photobiol. 1987; 45(5):595-600.
47. Giraudeau, C.; Moussaron, A.; Stallivieri, A. Indocyanine green: photosensitizer or chromophore? Still a
debate. Curr Med Chem. 2014; 21:1871-97.
48. Grube, D. Immunoperoxidase methods: Increased efficiency using fluorescence microscopy for 3,3-diaminobenzidine (DAB) stained semithin sections. Histochem.
1980; 70(1):19-22.
49. Haedersdal, M.; Beerwerth, F.; Nash, J.F. (2011). Laser and intense pulsed light hair removal technologies:
from professional to home use. Br J Dermatol. 2011;
165(Suppl 3):31-6.
50. Hellinen, L.; Bahrpeyma, S.; Rimpelä, A.K.; et al. Microscale thermophoresis as a screening tool to predict
melanin binding of drugs. Pharmaceutics. 2020; 12:554.
51. Henle, K.J.; Warters, R.L. Heat protection by glycerol
in vitro. Cancer Res. 1982; 42:2171-76.
52. Hill, H.Z. The function of melanin or six blind people
examine an elephant. Bioessays. 1992; 14:49-56.
53. Hobbs, H.E.; Sorsby, A.; Freedman, A. Retinopathy following chloroquine therapy. Lancet. 1959;
274(7101):478-80.
54. Huang, L.; Liu, M.; Huang, H.; et al. Recent advances and progress on melanin-like materials and their
biomedical applications. Biomacromolecules. 2018;
19:1858-68.
55. Huang, X.; El-Sayed, I.H.; Qian, W.; El-Sayed, M.A.
Cancer cell imaging and photothermal therapy in the
near-infrared region by using gold nanorods. J Am
Chem Soc. 2006; 128(6): 2115-20.
56. Jakubiak, P.; Cantrill, C.; Urtti, A.; Alvarez-Sánchez, R.
Establishment of an in vitro-in vivo correlation for melanin
binding and the extension of the ocular half-life of small-molecule drugs. Mol Pharmaceutics. 2019; 16:4890-901.
57. Jiang, R.; Cheng, S.; Shao, L.; Ruan, Q. Mass-based
photothermal comparison among gold nanocrystals,
PbS nanocrystals, organic dyes, and carbon black. J
Phys Chem C. 2013; 117:8909-15.
58. Jori, G.; Spikes, J.D. Photothermal sensitizers: possible
use in tumor therapy. J Photochem Photobiol B: Biol.
1990; 6:93-101.
59. Kayatz, P.; Thumann, G.; Luther, T.T.; et al. Oxidation
causes melanin fluorescence. Invest Ophthalmol Vis Sci.
2001; 42(1):241-6.
60. Kinross-Wright, V. Clinical trial of a new phenothiazine
compound: NP-207. Psych Res Rep. 1956; 4:89-94.
61. Kolarova, H.; Nevrelova, P.; Bajgar, R.; et al. In vitro
photodynamic therapy on melanoma cell lines with
phthalocyanine. Toxicol in Vitro. 2007; 21(2):249-53.
62. Kono, R.; Yamaoka, T.; Yoshizaki, H.; John McGinness,
J. Anomalous absorption and dispersion of sound waves
in diethylamine melanin. J Appl Phys. 1979; 50:1236-44.
63. Kono, R.; Yoshizaki, H. Ultrasonic shear spectrum
in hydrated diethylamine melanins and its relation to
stacking in a planar group. J Chem Phys. 1981; 75:4654.
64. Kostenich, G.; Babushkinab, T.; Malikb, Z.; Orenstein, A. Photothermic treatment of pigmented B16
melanoma using a broadband pulsed light delivery system. Cancer Lett. 2000; 157:161-68.
65. Kowalska, J.; Banach, K.; Rok, J.; et al. Molecular and
´biochemical basis of fluoroquinolones-induced phototoxicity—The study of antioxidant system in human
melanocytes exposed to UV-A radiation. Int J Mol Sci.
2020, 21:9714.
66. Krol, E.S.; Liebler, D.C. Photoprotective actions of
natural and synthetic melanins. Chem. Res. Toxicol.
1998; 11:1434-40.
67. Kuzu, O.F.; Nguyen, F.D.; Noory, M.A.; Sharma, A.
Current state of animal (mouse) modeling in melanoma research. Cancer Growth Metast. 2015; 8s1:81-94.
68. Larsson, B.S. Melanin-affinic thioureas as selective
melanoma seekers. Melanoma Res. 1991; 1(2):85-90.
69. Larsson, B.S. Interaction between chemicals and melanin. Pigm Cell Res. 1993; 6(3):127-33.
70. Li, Z.; Yu, X.F.; Chu, P.K. Recent advances in cell-mediated nanomaterial delivery systems for photothermal
therapy. J Mat Chem. B. 2018; 6:1296-311.
71. Li, X.Y.; Tan, L.C.; Dong, L.W.; et al. Susceptibility
and resistance mechanisms during photodynamic therapy of melanoma. Front Oncol. 2020; 10:1-17.
72. Liebscher, J.; Mrówczyński, R.; Scheidt, H.A.; et al.
Structure of polydopamine: A never-ending story?
Langmuir. 2013; 29:10539-48.
73. Lindquist, N.G.; Ullberg, S. (1972). The melanin affinity of chloroquine and chlorpromazine studied by whole
body autoradiography. Acta Pharm Toxicol. 1972; 1:1-32.
74. Lindquist, N.G. Accumulation of drugs on melanin.
Acta Radiol Diagn. (Stockh). 1973; 325:1-92.
75. Link, E.; Łukiewicz, S. A new radioactive drug selectively accumulating in melanoma cells. Eur J Nucl
Med. 1982; 7(10):469-73.
76. Liu, Y.; Ai, K.; Liu, J.; et al. Dopamine-melanin colloidal nanospheres: an efficient near infrared photothermal therapeutic agent for in vivo cancer therapy. Adv
Mater. 2013; 25:1353-59.
77. Liu, Y.; Ai, K.; Lu, L. Polydopamine and its derivative
materials: Synthesis and promising applications in energy, environmental, and biomedical fields. Chem Rev.
2014; 114(9):5057-115.
78. Lowrey, A.H., Fameini, G.R., Loumbev, V., et al.
Modeling drug-melanin interaction with theoretical
linear solvation energy relationships. Pigm Cell Res.
1997; 10(5):251-56.
79. Maduray, K.; Karsten, A.; Odhav, B.; Nyokong, T. In
vitro toxicity testing of zinc tetrasulfophthalocyanines
in fibroblast and keratinocyte cells for the treatment
of melanoma cancer by photodynamic therapy. J Photochem Photobiol B: Biol. 2011; 103(2):98-104.
80. Marino, J.; García Vior, M.C.; Furmento, V.A.; et al.
Lysosomal and mitochondrial permeabilization mediates zinc(II) cationic phthalocyanine phototoxicity.
Int J Biochem Cell Biol. 2013; 45(11):2553-62.
81. Martínez, L.M.; Martinez, A.; Gosse, G. Production
of melanins with recombinant microorganisms. Front
Bioeng Biotechnol. 2019; 7:285.
82. Mavridi-Printezi, A.; Guernelli, M.; Menichetti, A.;
Montalti, M. Bio-applications of multifunctionalmelanin nanoparticles: From nanomedicine to nanocosmetics. Nanomaterials. 2020; 10:2276.
83. McGinness, J.E.; Corry, P.M.; Armour, E. Melanin-binding drugs and ultrasonic-induced cytotoxicity.
Pigment Cell, vol. 2, 1976. Karger, Basel, New York. p.
316-20.
84. Meng, S.; Kaxiras, E. Theoretical models of eumelanin
protomolecules and their optical properties. Biophys J.
2008; 94:2095-105.
85. Meredith, P.1.; Riesz, J. Radiative relaxation quantum
yields for synthetic eumelanin. Photochem Photobiol.
2004; 79(2):211-6.
86. Micillo, R.; Panzella, L.; Koike, K.; et al. “Fifty shades” of
black and red or how carboxyl groups fine tune eumelanin
and pheomelanin properties. Int J Mol Sci. 2016; 17:746.
87. Naidoo, C.; Kruger, C.; A. Abrahamse, H. Photodynamic therapy for metastatic melanoma treatment: A
review. Technol Cancer Res Treat. 2018; 17:1-15.
88. Napolitano, A.; Palumbo, A.; d’ Ischia, M.; Prota, G.
Mechanism of selective incorporation of the melanoma
seeker 2-thiouracil into growing melanin. J Med Chem.
1996; 39(26):5192-201.
89. Nicolaus, R.A. Coloured organic semiconductors: melanins. Rend Accad Sci Fis Mat. 1997; 64:325-60.
90. Olivieri, M.; Nicolaus, R.A. Sulla DHI-melanina.
Rend Accad Sci Fis Mat. 1999; 66:85-96.
91. Overwijk, W.W.; Restifo, N.P. B16 as a mouse model for human melanoma. Curr Prot Immunol. 2000;
39(1):20.1.
92. Panzella, L.; Ebato, A.; Napolitano, A.; Koike, K. The late
stages of melanogenesis: Exploring the chemical facets and
the application opportunities. Int J Mol Sci. 2018; 19: 1753.
93. Park, J.; Moon, H.; Hong, S. Recent advances in melanin-like nanomaterials in biomedical applications: a
mini review. Biomat Res. 2019; 23:24.
94. Parrish, J.A.; Anderson, R.R.; Harrist, T.; et al. Selective thermal effects with pulsed irradiation from lasers:
From organ to organelle. J Invest Dermatol. 1983; 80(6
supplement):75s-80s.
95. Pereira, N.A.M.; Laranjo, M.; Pina, J.; et al. Advances
on photodynamic therapy of melanoma through novel ring-fused 5,15-diphenylchlorins. Eur J Med Chem.
2018; 146:395-408.
96. Plaetzer, K.; Krammer, B; Berlanda, J.; et al. Photophysics and photochemistry of photodynamic therapy:
fundamental aspects. Lasers Med Sci. 2009; 24:259-68.
97. Potts, A.M. Uveal pigment and phenothiazine compounds. Trans Am Ophthal Soc. 1962; 60:517-52.
98. Radzi, R.; Osaki, T.; Tsuka, T.; et al. Morphological
study in B16F10 murine melanoma cells after photodynamic hyperthermal therapy with indocyanine green
(ICG). J Vet Med Sci. 2012; 74(4):465-72.
99. Raghavan, P.R.; Zane, P.A.; Tripp, S.L. Calculation of
drug-melanin binding energy using molecular modeling. Experientia. 1990; 46(1):77-80.
100. Raposo, G.; Marks, M.S. Melanosomes — dark organelles enlighten endosomal membrane transport. Nature
Rev Mol Cell Biol. 2007; 8(10):786-97.
101. Rapozzi, V.; Zorzet, S.; Zacchigna, M.; et al. (2014).
Anticancer activity of cationic porphyrins in melanoma
tumour-bearing mice and mechanistic in vitro studies.
Mol Cancer. 2014; 13(1);1-17.
102. Rimpelä, A.K.; Garneau, M.; Baum-Kroker, K.S.; et al.
Quantification of drugs in distinctly separated ocular
substructures of albino and pigmented rats. Pharmaceutics. 2020; 12:1174.
103. Rughani, M.G.; Gupta, A.; Middleton, M.A. New treatment approaches in melanoma: current research and
clinical prospects. Ther Adv Med Oncol. 2013; 5(1):73-
80.
104. Ruiz-Molina, D.; Saiz Poseu, J.; Busque, F.; et al. The
chemistry behind catechol-based adhesion. Ang Chem
Int Ed. 2018; DOI 10.1002/anie.201801063.
105. Sethi, M.; Chakarvarti, S.K. Hyperthermia techniques for cancer treatment: A review. Int J Pharm Tech Res. 2015; 8(6):292-9.
106. Scognamiglio, F.; Travan, A.; Turco, G.; et al. Adhesive coatings based on melanin-like nanoparticles for
surgical membranes. Coll Surf B: Bioint. 2017; DOI
10.1016/j.colsurfb.2017.04.057.
107. Sheleg, S.V.; Zhavrid, E.A.; Khodina, T.V.; et al. Photodynamic therapy with chlorin e6 for skin metastases
of melanoma. Photodermatol Photoimmunol Photomed.
2004; 20(1): 21-6.
108. Skidan, I.; Dholakia, P.; Torchilin, V.P. Photodynamic
therapy of experimental B-16 melanoma in mice with
tumor-targeted 5,10,15,20-tetraphenylporphin-loaded
PEG-PE micelles. J Drug Target. 2008; 16(6):486-93.
109. Smith, S.H.; Goldschmidt, M.H.; McManus, P.M.
A comparative review of melanocytic neoplasms. Vet
Pathol. 2002; 39:651-78.
110. Sniegocka, M.; Podgórska, E.; Płonka, P.M.; et al.
Transplantable melanomas in hamsters and gerbils as
models for human melanoma. Sensitization in melanoma radiotherapy—From animal models to clinical
trials. Int J Mol Sci. 2018; 19:1048.
111. Solano, F. Melanin and melanin-related polymers as
materials with biomedical and biotechnological applications—Cuttlefish ink and mussel foot proteins as inspired biomolecules. Int J Mol Sci. 2017; 18:1561.
112. Stockert, J.C. Cytochemistry of nucleic acids: binding
mechanisms of dyes and fluorochromes. Micr Electr
Biol Cel. (BIOCELL). 1985; 9:89-131.
113. Stockert JC, Blázquez-Castro A. Fluorescence microscopy in life sciences, E-Book, Bentham Science Publishers, Sharjah, U.A.E. 2017.
114. Stockert, J.C.; Cañete, M.; Colman, O.D. Histochemical mechanism for the orthochromatic staining and
fluorescence reaction of lignified tissues. Cell Mol Biol.
1984; 30:503-8.
115. Stockert, J.C.; Cañete, M.; Juarranz, A.; et al. Porphycenes: facts and prospects in photodynamic therapy of
cancer. Curr Med Chem. 2007; 14:997-1026.
116. Stockert, J.C.; Juarranz, A.; Villanueva, A.; et al.
Photodynamic therapy: selective uptake of photosensitizing drugs into tumor cells. Curr Top Pharmacol.
2004; 8:185-217.
117. Stockert, J.C.; Herkovits, J. Melanin adhesivity for
possible trapping of SARS-CoV-2 on chin straps: a
proof-of-concept assay using model nanoparticles. Acta
Sci. Microbiol. 2021; 4:2-5.
118. Thathachari, Y.T.; Blois, M.S. Physical studies on melanins. II. X-ray diffraction. Biophys J. 1969; 6:77-89.
119. Toubia, I.; Nguyen, C.; Diring, S.; et al. Study of cytotoxic and photodynamic activities of dyads composed
of a zinc phthalocyanine appended to an organotin.
Pharmaceuticals. 2021; 14:413.
120. Valli, F.; García Vior, M.C.; Roguin, L.P.; Marino, J.
Oxidative stress generated by irradiation of a zinc(II)
phthalocyanine induces a dual apoptotic and necrotic response in melanoma cells. Apoptosis. 2019; DOI
10.1007/s10495-018-01512-w.
121. Wang, Y.; You, W.; LI, X. Current status of gene therapy
in melanoma treatment. BIOCELL. 2020; 44(2):167-74.
122. Wang, Z.; Peng, H.; Shi, W.; et al. Application of photodynamic therapy in cancer: challenges and advancements. BIOCELL. 2021; 45(3):489-500.
123. Watt, A.A.R.; Bothma, J.P.; Meredith, P. The supramolecular structure of melanin. Soft Matter. 2009;
5:3754-60.
124. Whittingham, M.S.; Jacobson, A.J., Editors. Intercalation
chemistry. Academic Press, New York, London, 1982.
125. Yue, Y.; Zhao, X. Melanin-like nanomedicine in photothermal therapy applications. Int J Mol Sci. 2021;
22(1):399.
126. Zajac, G.W.; Gallas, J.M.; Cheng, J.; et al. The fundamental unit of synthetic melanin: a verification by tunneling microscopy of X-ray scattering results. Biophys
Biochim Acta. 1994; 1199:271-8.
127. Zheng, X.; Xing, D.; Zhou, F.; et al. Indocyanine green-containing nanostructures as near infrared dual-functional targeting probes for optical imaging and photothermal therapy. Mol Pharmaceutics. 2011; 8(2):447-56.
128. Zheng, R.; Wang, S.; Tian, Y.; et al. Polydopamine-coated magnetic composite particles with an
enhanced photothermal effect. ACS Appl Mat Interf.
2015; 7:15876-84.
129. Zhou, X.; McCallum, N.C.; Hu, Z.; et al. Artificial
allomelanin nanoparticles. ACS Nano. 2019; DOI
10.1021/acsnano.9b02160.
